A Brief history of Cataract Surgery : From Ancient couching method to the latest Femtosecond Laser Surgery (Part 1)
Its been a long time since I posted a topic here.
Today we will be learning something interesting about Cataract, I hope you will enjoy it!
(Image source)
some Cataract Facts!
- Cataract, the leading cause of Blindness, 50% of the total worldwide blindness is caused by it.[1]
- Moslty affects the people above 50 yr , by the age of 70 more than 90% people develop cataract which results into blindness/visual impairement. This shows how common the disease is in our world.
- Cataract surgery is most performed eye surgery in the world. 20 million cataract surgeries are done each year around the globe!
First, I will talk in short about anatomy of normal eye & mechanism of cataract formation before going into the surgeries so that you will understand it better
What is cataract? The difference between normal eye and cataractous eye.
Cataract is the development of any opacity in the lens or its capsule.
It was derived from a Greek word katarraktes meaning 'waterfall'(they believed that abnormal fluid in the eye in front of lens was cause of cataract)

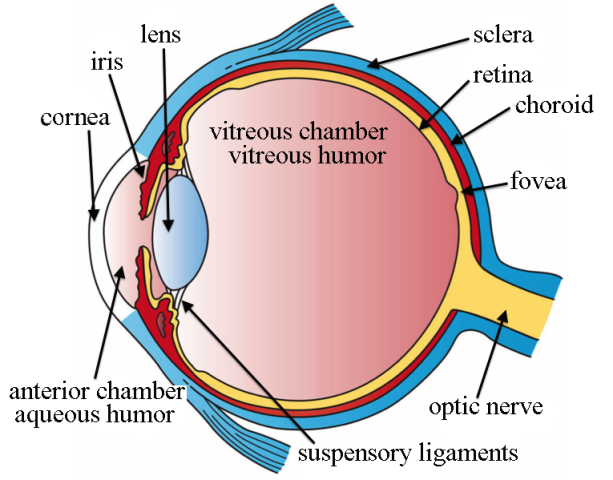

Fig -Anatomy of Eye(Image source)
Shown above is the cut section of normal eye.
As you are reading this post now, the light rays from the display screen pass thorugh the following layers of your eye:
- Cornea - it is the outermost transparent layer made up of epithelium, fibrous tissues.
- Anterior chamber - it contains transparent fluid known as aqueous humour consisting of 99% water and various electrolytes.
- Pupil - It is nothing but a circular opening in the iris diaphragm located in front of the lens
- Lens-
(image source)
it is protenaceous material made of crystalline proteins.It is a biconvex lens with a fibrous capsule around it. it is held by the contractile muscular structure known as ciliary body.It can change its thickness and curvature for near and distant vision. its also a tranparent layer, it is the site where defect occurs and results into cataract. - Vitreous - It it the space behind the lens containing transparent jelly known as vitreous humour
Light rays from the object, After passing through these layers reach Retina , the sensory layer where image of the object is formed and this image is sent to brain via the optic nerve....This is how we see
Normal Eye and Eye with Cataract
Fig- Right eye is normal but left eye is cataractous(Image source)
What do you see in the picture above?..can you make any difference between the two eyes?..
The right eye looks black which is a normal but the left eye of the person has white pupil, that is cataractous eye.
lens is made up off regularly arranged lens fibre, lens fibre are nothing but crystallin proteins. In normal state it is transparent and light can easily passs through it, so you will see a black round spot at the centre of your eye(look at yours if you havent)....but in cataract transparent lens becomes opaque due to abnormality in its constituent and light has some difficulty passing through it when its fully opaque no light can enter it. Lets look at a example : If you are using spectacles it will be easier to understand.... when the glasses are clear you will see clear images, but when they are foggy, when they are covered with dusts you will see a blurry image.. this is the same case in cataract.
Upto now we have learnt the basics of cataract, i.e. the main culprit in cataract is the opaque lens .
Evolution of Cataract surgery
Among different surgeries perfomed in human body, Cataract surgery is one of the oldest surgeries known. Ancient cataract surgery is believed to be 3000 years old which is known as couching which is even mentioned in mahabharata. Then the first scientific cataract lens extraction happened in 1747 A.D in paris,France which was performed by J. Daviel. After that various modification came by, intraocular lens implants were made possible , with the help of recent technology cataract surgery has reached the new height and millions of blinds are able to see the world clearly..
The Couching Method
Fig- Couching method of cataract surgery, opaque lens is pushed into vitreous cavity and left there(image source)
It is the oldest known method of cataract surgery which is believed to be 3000 years old.. It was the only method of cataract extraction for about 2000 years.
it was performed only in the completely blind eye with hard opaque lens. In this method they used to push the lens and separate it from ciliary body into the vitreous(see the picture above).
You may have question in your mind- How would a person see without a lens? I would like to point out the fact that total power of the eye is about 60 dioptre and that of lens is only 16 doptre, so even after removing the lens person can see with the remaining power which is provided by cornea and fluids inside the eyes. "Seeing a blurry image is way better that not seeing at all , isn't it?"
Fallacies of this method :
Although this method ruled for many centuries it had many demerits . The lens which is pushed into the vitreous cavity is recognized as foreign body and it elicits inflammatory reaction aka phacoanaphylactic reactions.
Intracapsular Cataract Extraction(ICCE) : 1880-1980 A.D
After people realized the harmful effect of lens left in vitreous chamber in couching method, this procedure came into light . In this method the whole lens including its capsule is removed in intact state. This method too could be done in late stage of catatract when lens becomes hard, otherwise there is chance of breakage of lens and development of inflammatory reaction.
ICCE- Entire lens with its capsule is removed(Image source)
This method was a good improvement over couching but many demerits were there:
- since entire lens is removed, there is chance of herniation of vitreal contents into anterior chamber and there is also a chance of fall of lens particles posteriorly into vitreous.
- High incidence of endopthalmitis(inflammation of interior of eyeball), retinal detachment
- Posterior chamber intra-ocular lens couldnot be implanted.
- This method was done without sutures so patients would remain immobilized which has many health demerits. and the incision given was very large- half way the cornea, but sutures were not developed. so there was high incidence of astigmatism(Its an error in refractive power of eye due to irregularity in the curvature of cornea or lens)
- Ciliary zonules had to be broken so it is done in the present time only in case of dislocated lens.
Extracapsular Cataract Extraction(ECCE)
This is widely used cataract surgery in the present world, after exposure of various defects in the intracapsular method this procedure was developed.
ECCE- posterior lens capsule and part of anterior capsule is left intact(Image source)
In this method part of anterior capsule, the lens matter is removed but posterior capsule and marginal part of anterior capsule is kept intact so that post capsule prevented lens material from falling into vitreous . By this method Intraoccular lenses also could be implanted into the capsule. There are less post operative complicatons.
Previously in this method - large incision had to be given to extract lens which required more sutures and caused post operative astigmatism in great number of patients. smaller the incision more rapid the healing and less chance of astigmatism.
later it was replaced by SICS(Small incision cataract surgery) where small incision is sufficient for the procedure.It was made possible by the develoopment of foldable and rollable lenses. Previoulsy large incision was required to insert the lens .
Phacoemulsification By DR Kelman(1967A.D.)
(image source)
Phaco- lens, emulsification= breakdown.. it is modified part of ECCE where ultrasonic frequency is used to break the lens cortex into pieces and it is aspirated via needle. So, this proedure was able to do surgeries in less than 4 mm which is a great advantage. It has less chance of astigmatism, less post operative complications and it can be done even with topical anaesthesia. But it is macine dependant and requires a higher cost.
Today we learned about basics of cataract, some methods of cataract surgery including : Couching, ICCE, ECCE and phacoemulsification. With this we will conclude it for today and in the next post we will be learning about Femtosecond laser surgery and other recent advances in the Cataract surgeries.
Sources:
1.https://www.ncbi.nlm.nih.gov/pubmed/27820750
2.http://cdn.intechopen.com/pdfs/42710/InTech-The_history_of_cataract_surgery.pdf
3.http://www.uniteforsight.org/global-health-university/cataract-surgery
4.http://www.who.int/blindness/causes/en/
5.Comprehensive Ophthalmology, A.K. Khurana,6th Ed, p-196 to 200
6.https://www.medscape.com/viewarticle/579850_2
