RealTime data addition on SteemBotCompare

Real time data addition to SteemBotCompare

webpage:https://steembotcompare.neocities.org/

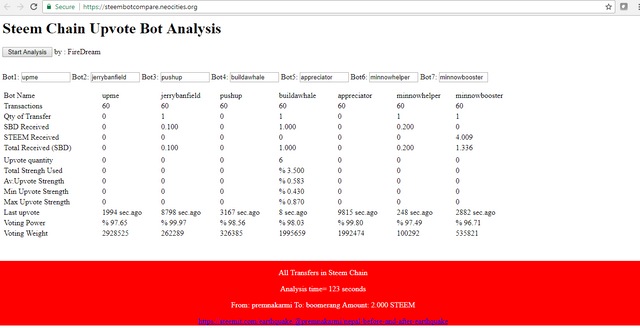

Introduction

SteemBotCompare is a program that compares bots that are active in Steem.
User can select up to 7 different upvote bots to compare with real-time data.
New properties added to the program.

New Added Features

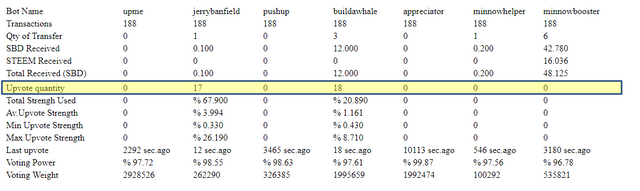

• Upvote quantity:

This feature calculates how many times the bot has upvoted.

This is done mainly with script :

var release = steem.api.streamTransactions('head', function(err, result)
{
if(result.operations["0"]["0"]=='vote') //check if the operation is a voting
{
if (result.operations["0"][1].voter==botNo1) //check if the voter is concerning bot
{
botvot1=botvot1+1; //increase the vote counter
bottable.rows[7].cells[1].innerHTML =botvot1; //write the vote qty. on the table
};

The update is done with every voting operation on steem.

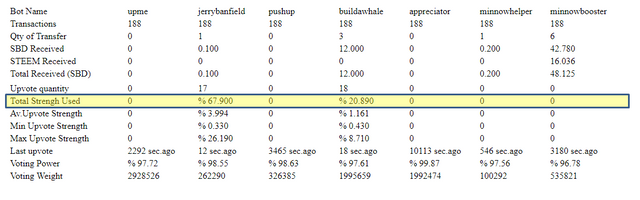

• Total Strength Used

Generally upvote bots finish voting when their used strength is approximately 100%
This is using of %2 of their total strength.
So if an upvote bot starts upvoting with %100, at the end of voting session the total stregth will be %98.

When this indicator is close to 100% it will mean that the bot will finish voting soon.
The script for finding this is similar :

var release = steem.api.streamTransactions('head', function(err, result)
{
if(result.operations["0"]["0"]=='vote') //check if the operation is a voting
{
if (result.operations["0"][1].voter==botNo1) //check if the voter is concerning bot
{
botstr1=botstr1+(result.operations["0"][1].weight/100); //calculate cumulated power use
bottable.rows[8].cells[1].innerHTML ='% '+botstr1.toFixed(3); //write the cumulative on the table
};

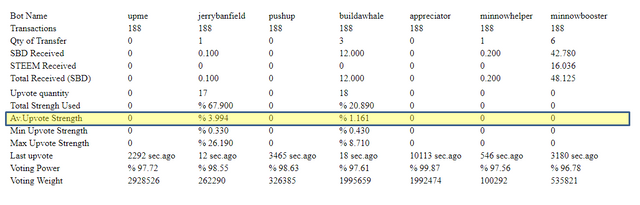

• Average Upvote Strength

This is average upvote power used per bidder.

Calculated by :

botav1=botstr1/botvot1;

Written to the table :

bottable.rows[9].cells[1].innerHTML ='% '+botav1.toFixed(3);

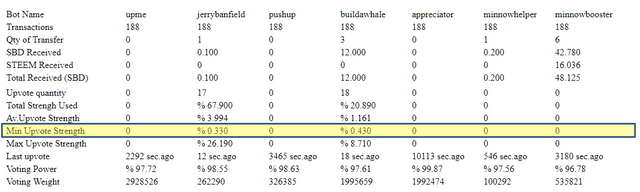

• Minimum Upvote Strength

This feature is very important indicator. This shows how much the upvote bot upvotes the posts at the minimum bid.

All the upvote bots have minimum bids.
When you send the minimum bid, it upvotes with a certain %.
This percentage changes according to the bid you make.
Forexample, if the bot minimum bid is 1 SBD, this indicator shows how much % of upvote this bot gives when you send 1 SBD to the bot.
This also means if you send 2 SBD, theorotically you will receive two times of % upvote from the bot.
The code managing this is as follows :

var botmin1=100 //maximize the minupvote variable to find the minimum
var release = steem.api.streamTransactions('head', function(err, result)
{
if(result.operations["0"]["0"]=='vote') //check if the operation is a voting
{
if ((result.operations["0"][1].weight/100)<botmin1) // check if the result is minimum
{
botmin1=(result.operations["0"][1].weight/100); // write the value to variable if it is minimum
}
bottable.rows[10].cells[1].innerHTML ='% '+botmin1.toFixed(3); // write the value to table

}

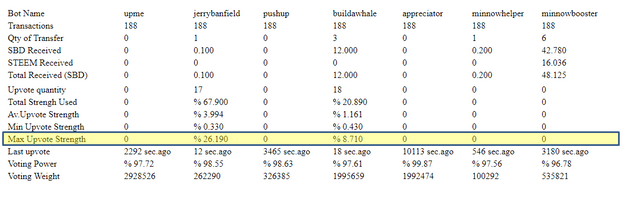

• Maximum Upvote Strength

This indicator is put to see if there is a difference of payout as percentage when you send more bid to a bot.

The script managing this is as follows :

var botmax1=0 //minimized variable
var release = steem.api.streamTransactions('head', function(err, result)
{
if(result.operations["0"]["0"]=='vote') //check if the operation is a voting
{
if ((result.operations["0"][1].weight/100)>botmax1) // check if the result is maximum
{
botmax1=(result.operations["0"][1].weight/100); // write the value to variable if it is maximum
}
bottable.rows[11].cells[1].innerHTML ='% '+botmax1.toFixed(3); // write the value to table

}

The use of minimum and maximum values is best explanied by an example :

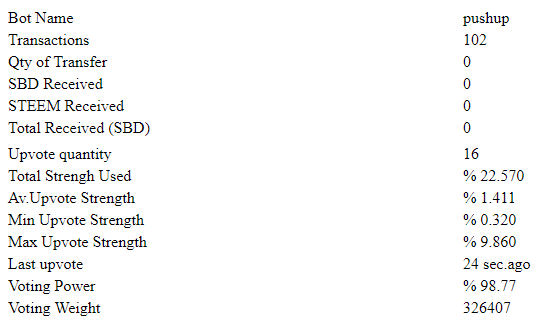

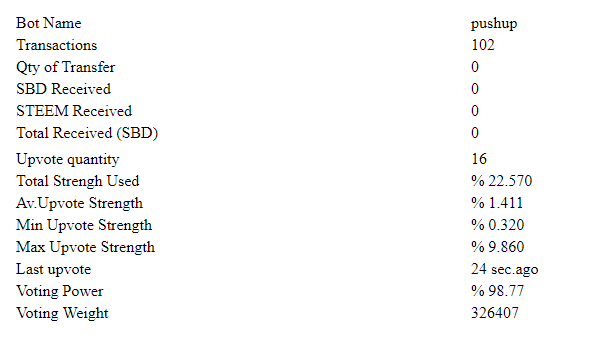

The analysis time is 02.01.2018 - 07:10 UTC Time.

This was the time "pushup" bot was at voting cycle.

After a quick analysis of 260 seconds it was observed that the minimum and maximum vote strengths were as follows :

Min : 0.32%
Max : 9.86%

Taking a look at steemd:
"pushup" upvated following post with minimum (0.32%)

Take a quick search on steemd we find :

The user have sent 0.1 SBD ( minimum bid for this bot ) to pushup and he got upvoted.

So converting it to unit SBD ( how much vote could we get if we sent 1 SBD ) we find :
%0.38 / 0.1 SBD = 3.8%
Theorotically, if we send 1 SBD to this bot we would be upvoted by 3.8%.

Now let's check if this is true :
At steemd we find :

this post is upvoted at maximum (9.86%)
Looking at the post :

This user sent 3SBD to pushup.
Let's again convert it to upvote / unit SBD
9.86% / 3 SBD = 3.29%

This result more or less approves our theory but there is a slight difference which I think comes from rounding numbers.

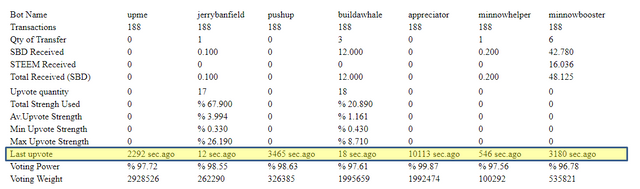

• Last upvote time

The upvoting bots are working in cycles. After upvoting for %100 ( which consumes their %2 of voting power ) they go into a resting state to recover their upvoting power to be ready for new voting.
This cycle generally requires 2.4 hours ( 8640 seconds).

The script managing this is as follows ( thank you @stoodkev for all the steem.js documents ) :

steem.api.getAccounts([botNo1], function(err, response){
var secondsago = (new Date - new Date(response[0].last_vote_time + "Z")) / 1000;

This is again theorotical but looking at this time, you can predict more or less when the bot will start upvoting again.

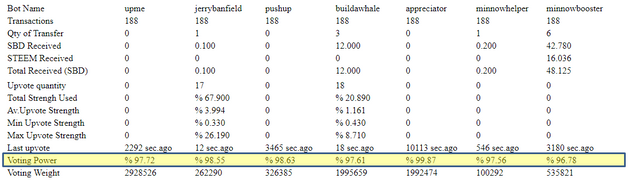

• Voting Power

This is a real time indicator, with how much power is the bot voting.
According to my observations the upvote bots, with a little exeptions are strictly obeying their upvoting - resting cycles so that all the upvotes are made between %100 - %97 power of the bot maintaining a very little income difference.
But it is always important to prove that in case there is something wrong, a disturbance with the bot.

The code for this :

steem.api.getAccounts([botNo1], function(err, response){
var secondsago = (new Date - new Date(response[0].last_vote_time + "Z")) / 1000;
var vpow = response[0].voting_power + (10000 * secondsago / 432000);
vpow = Math.min(vpow / 100, 100).toFixed(2);
This is also an indicator to be used with "last voting time" since the bots start voting again when their voting power is close to %100.

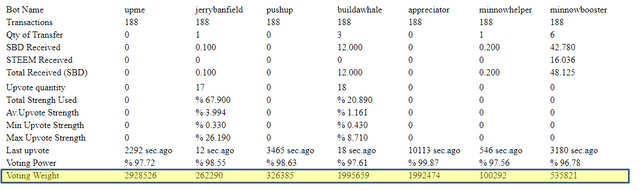

• Voting Weight of the Bot

This is the most important indicator in the bot analysis.

If 2 bots are voting you at %0.38 the difference in their voting weight will directly effect your income.

Let's take the example with pushup bot that we previously written.

We have seen that pushup bot is giving 3.8% upvote per 1 SBD sent.
The voting weight of pushup bot is 326,407 steems at the time of analysis.

Now consider an other bot giving us %0.5 upvote per 1 SBD sent.
How can we conclude which bot is better ?
To tell which bot is better we have to check the voting weights.

If the second bot has 2,500,000 steems then a comparison would be made as follows :
pushup is giving --> %3.8 x 326,407 =12403 vote.steem
bot2 is giving --> %0.5 x 2,500,00 = 12500 vote.steem
Here we can conclude that infact both bots gives you the same income / SBD.

The code to calculate the voting weight is a bit complex.
I recommend a very good tutorial prepared by @stoodkev with this link.
I also used this tutorial.

Conclusion

With this web application https://steembotcompare.neocities.org/ you can directly deep-dive into the analysis of the bots on real time and you can conclude yourself with facts and data which upvote bot to use.
You can also use this application to further analyse bot behaviors and share your own analysis on Steemit.

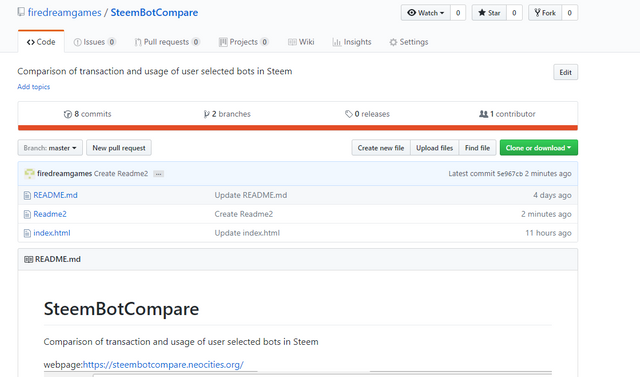

The GitHub link for the project : https://github.com/firedreamgames/SteemBotCompare
Link for index.html source code : https://github.com/firedreamgames/SteemBotCompare/blob/master/index.html
Link for the website :
https://steembotcompare.neocities.org/
